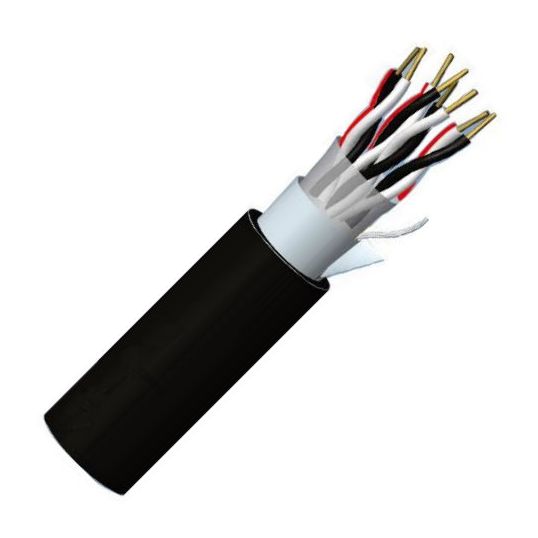

Garland Pro Series Instrumentation Cable Unarmoured 8 Triad Overall Screened 0.5mm 110/150V PVC/AL/PVC Black

Description

Instrumentation Cable, Unarmoured, 8 Triad, Overall Screened, 0.5 mm, Plain Annealed Copper, 110/150 Volt, 7/0.3 mm Strands, 13 mm Overall Diameter, Bend Radius: Static - 130 mm, 0.35 mm Insulation Thickness, 0.9 mm Sheath Thickness, 840 N Pulling Tension, Conductor Resistance: DC - 38.4 Ohm/km, 100% Screen Coverage, Aluminium/Polyester Tape Screen, V-90 PVC Insulation, 5V-90 PVC Sheath, Black White Red & Numbered Cores, Black Sheath, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9329849010461
SKU	GARMCT7038S1000
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1000
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCT7038S1000
Bend Radius	Static 130 mm
Conductor Resistance	DC: 38.4 Ohm/km
Conductor Size	0.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/White/Red Numerals
Insulation Material	V-90 PVC
Number of Pairs	8 Triad
Insulation Thickness	0.35 mm
Overall Diameter	13 mm
Pulling Tension	840 N
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Black
Sheath Thickness	0.9 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	7/0.3 mm
Temperature	-15 to 90 deg C
Voltage	110-150 Volt
