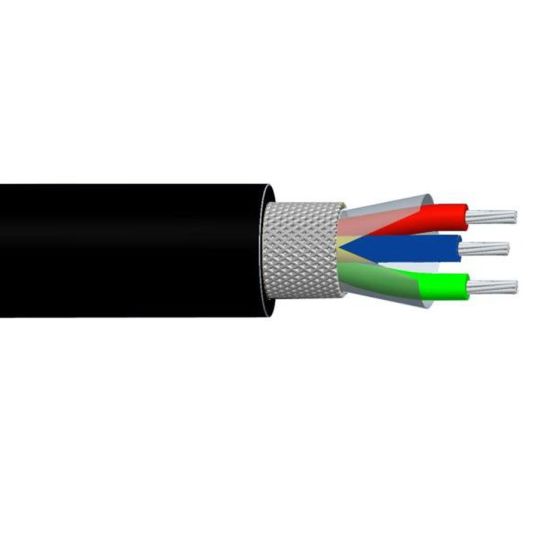

Garland Pro Series Security Cable Screened 3 Core 1mm 7/0.2mm PVC/TACS/PVC Black
Loading...
Description
Security Cable, Screened, 3 Core, 1 mm, Tinned Copper, 7/0.2 mm Strands, 4.5 mm Overall Diameter, Bend Radius: Static: - 45 mm, 0.3 mm Insulation Thickness, 0.75 mm Sheath Thickness, 46 N Pulling Tension, Conductor Resistance: DC - 98.68 Ohm/km, 80% Screen Coverage, Tinned Annealed Copper Screen, PVC Insulation, PVC Sheath, Red Blue Green Cores, Black Sheath, -15 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
9329849004347
|
|---|---|
| SKU |
GARMC73BS100
|
| Brand |
Garland
|
| Product Type |
Security Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MC73BS100 |
| Bend Radius | Static 45 mm |
| Conductor Size | 1.0 mm |
| Conductor Resistance | DC: 98.68 Ohm/km |
| Conductor Type | Tinned Annealed Copper |
| Insulation Material | PVC |
| Insulation Thickness | 0.3 mm |
| Number of Cores | 3 Core |
| Overall Diameter | 4.5 mm |
| Pulling Tension | 46 N |
| Screen Coverage | 80% |
| Screen Material | Tinned Annealed Copper |
| Sheath Colour | Black |
| Sheath Material | PVC |
| Sheath Thickness | 0.75 mm |
| Temperature | -15 to 70 deg C |
| Stranding | 7/0.2 mm |
