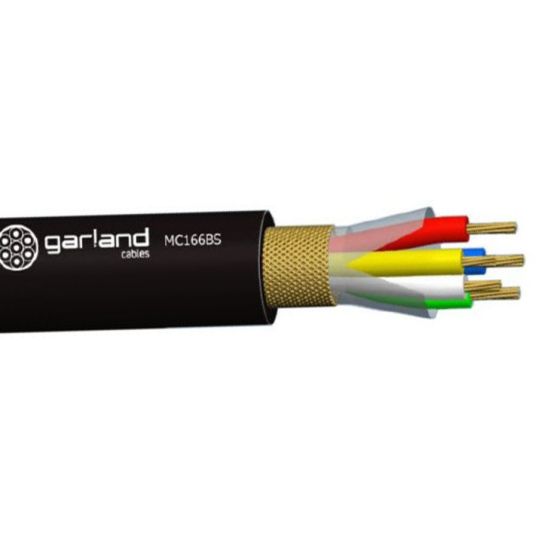

Garland Pro Series Flexible Control Cable VSD EMC Screened 5 Core & Earth 0.5mm Copper PVC/TACS/PVC Black

Description

Flexible Control Cable, VSD EMC Screened, 5 Core & Earth, 0.5 mm, Tinned Annealed Copper, 16/0.2 mm Strands, 7.2 mm Overall Diameter, Bend Radius: Static - 72 mm, 0.3 mm Insulation Thickness, 1 mm Sheath Thickness, 300 N Pulling Tension, Conductor Resistance: DC - 41.7 Ohm/km, 80% Screen Coverage, Tinned Annealed Copper Screen, V-75 PVC Insulation, V-75 PVC Sheath, Red, Blue, Green, Yellow, White, Black Cores, Black Sheath, -15 to 70 deg C

Key Specifications

Barcode (EAN-13)	9329849004323
SKU	GARMC166BS500
Brand	Garland
Product Type	Flexible Control Cable VSD EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC166BS500
Bend Radius	Static: 72 mm
Conductor Resistance	DC: 41.7 Ohm/km
Conductor Size	0.5 mm
Conductor Type	Tinned Annealed Copper
Core Colours	Black/Blue/Red/White/Green/Yellow
Insulation Material	V-75 PVC
Insulation Thickness	0.3 mm
Number of Cores	5 Core + Earth
Overall Diameter	7.2 mm
Screen Coverage	80%
Screen Material	Tinned Annealed Copper
Sheath Colour	Black
Sheath Material	V-75 PVC
Sheath Thickness	1 mm
Stranding	16/0.2 mm
Temperature	-15 to 70 deg C
