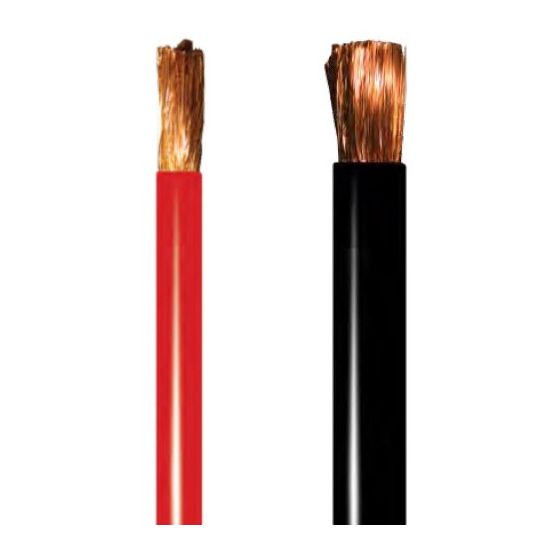

Austech Flexible Wire Single Insulated 1 Core 95mm 0.6/1kV Plain Copper V90HT PVC Red

Description

Flexible Wire, Single Insulated, 1 Core, 95 mm, Class 6 Plain Copper, 0.6/1 kV, 1348/0.3 mm Strands, 16.3 mm Overall Diameter, Conductor Resistance: DC - 0.2 Ohm/km, V-90HT PVC Insulation, Unsheathed, Red Insulation, Static: -35 to 105 deg C

Key Specifications

SKU	ELESIPF95R500
Brand	ElectCables
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SIPF95R500
Conductor Resistance	DC: 0.2 Ohm/km
Conductor Size	95 mm
Conductor Type	Class 6 Plain Copper
Insulation Colour	Red
Insulation Material	V-90HT PVC
Number of Cores	1 Core
Overall Diameter	16.3 mm
Sheath Material	Unsheathed
Stranding	1348/0.3 mm
Temperature	Static: -35 to 105 deg C
Voltage	0.6-1 kV
