Std Pack Size
1
OUR P/N:
ELCSRF3060V

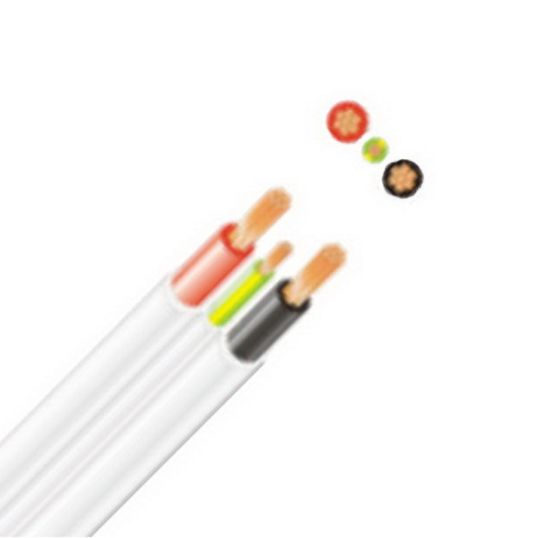

Flat Twin & Earth Cable, 2 Core & Earth, 6 mm, Plain Annealed Copper, 450/750 Volt, 6 mm Earth Conductor, 15.3 mm x 7.1 mm Overall Diameter, 70 mm Bend Radius, 0.8 mm Insulation Thickness, 1.1 mm Sheath Thickness, Conductor Resistance: DC: 3.08 Ohm/km, AC: 3.75 Ohm/km, V-90 PVC Insulation, 3V-90 PVC Sheath, Red Black Blue White Green/Yellow Cores, White Sheath, 75 deg C
Additional Information
| Brand | Electra |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | SRF3060V |
| Bend Radius | 70 mm |
| Conductor Type | Annealed Copper |
| Conductor Resistance | DC: 3.08 Ohm/km AC: 3.75 Ohm/km |
| Core Colours | Red/White/Blue/Black/Green/Yellow |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm |
| Overall Diameter | 15.3 mm x 7.1 mm |
| Sheath Material | 3V-90 PVC |
| Sheath Thickness | 1.1 mm |
| Sheath Colour | White |
| Temperature | 75 deg C |
| Voltage | 450-750 Volt |
| Conductor Size | 6 mm |
| Number of Cores | 2 Core + Earth |
| Earth Conductor Size | 6 mm |
