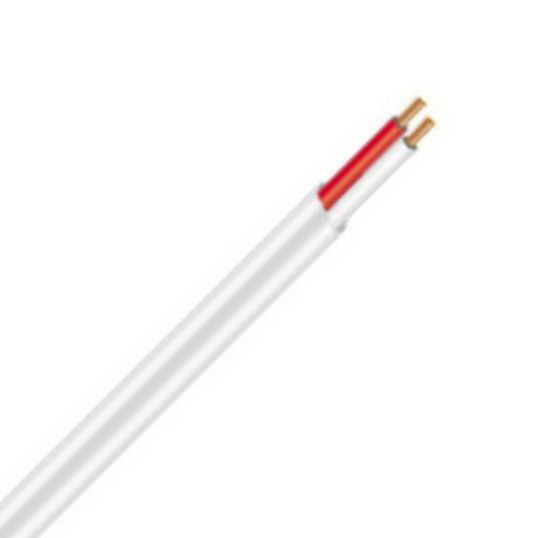

Electra 2.5mm Flat TPS Cable Red/White 100mtr

Description

Flat TPS Cable, 2.5 mm, Annealed Copper, 450-750 Volt, 2 Core, 2x7/0.67 mm Active Strands, 8.9 mm x 5.5 mm Overall Diameter, 100 mtr Length, Minor 25 mm Major 40 mm Bend Radius, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, DC: 7.41 Ohm/km AC: 9.01 Ohm/km Conductor Resistance, Red/White Core, V-90 PVC Insulation, 3V-90 PVC Sheath, White Sheath, 75 deg C, AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCSRF2025AV
Brand	Electra
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	SRF2025AV
Bend Radius	Minor 25 mm/Major 40 mm
Conductor Resistance	DC: 7.41 Ohm/km - AC: 9.01 Ohm/km
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Core Colours	Red/White
Insulation Material	V-90 PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core
Overall Diameter	8.9 mm x 5.5 mm
Sheath Colour	White
Sheath Material	3V-90 PVC
Sheath Thickness	1 mm
Standards	AS/NZS 5000.2 AS/NZS 1125 AS/NZS 3808
Temperature	75 deg C
Stranding	2x7/0.67 mm Active
Voltage	450-750 Volt
