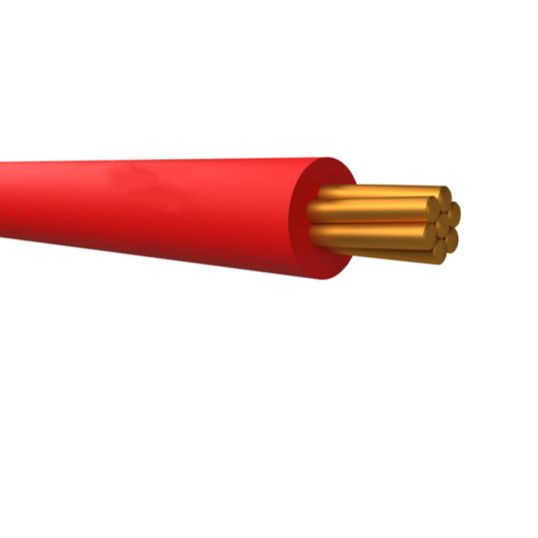

Building Wire 1 Core 70mm V-90 PVC Red 0.6/1kV

Electra 70mm Building Wire Red 100mtr

PRODUCT CODE:
ELCSR1700-RD
Std Pack Size
100
OUR P/N:
ELCSR1700-RD

You need to be registered and logged in to view product details and pricing

Building Wire, Single Insulated, 1 Core, 70 mm, Plain Annealed Copper, 0.6/1 kV, 175 Amp, 19/2.14 mm Strands, 13.6 mm Overall Diameter, 60 mm Bend Radius, 1.4 mm Insulation Thickness, Conductor Resistance: DC - 0.268 Ohm/km AC - 0.327 Ohm/km, V-90 PVC Insulation, Unsheathed, Red Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808

Additional Information

Additional Information
Brand Electra
Standard Pack Size 100
UNSPSC Class 26121500
UOM MTR
Vendor Product SR1700-RD
Bend Radius 60 mm
Conductor Type Annealed Copper
Conductor Resistance DC: 0.268 Ohm/km AC: 0.327 Ohm/km
Current 175 Amp
Insulation Colour Red
Insulation Thickness 1.4 mm
Insulation Material V-90 PVC
Overall Diameter 13.6 mm
Stranding 19/2.14 mm
Standards AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 70 mm
