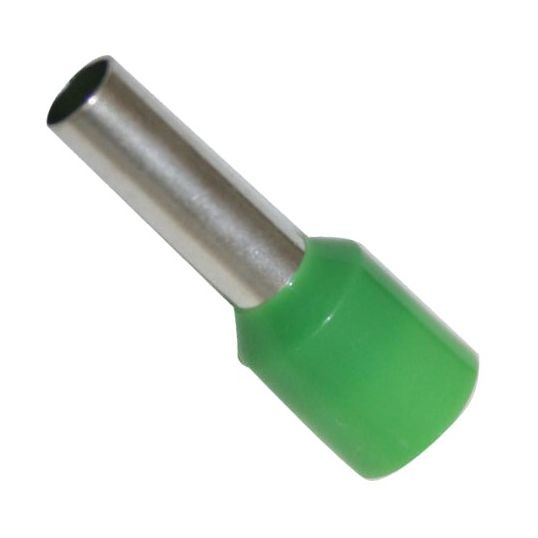

Cabac Bootlace Ferrule Insulated 6mm 3.9x12mm Pin 20mm OAL Green

$Cabac\Cabac_BLP600.jpg$

Description

Insulated Bootlace Ferrule, 6 mm, 1 Conductors, 12 mm Pin Length, 3.9 mm Pin Diameter, 6.9 mm Collar Inside Diameter, HNKE12/HNKE5/HNKE9/HNKE10/HNKE11/HNKE7, 20 mm Overall Length, Copper Sleeve, Nylon Insulation, Green Insulation, Copper Contact, Tin Plated, -55 to 105 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9318674507666
SKU	CAABLP600
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP600
Collar Inside Diameter	6.9 mm
Conductor Size	6 mm
Contact Material	Copper
Crimping Die	HNKE12 / HNKE5 / HNKE9 / HNKE10 / HNKE11 / HNKE7
Finish	Tin Plated
Insulation Material	Nylon
Insulation Colour	Green
Number of Conductors	1
Overall Length	20 mm
Pack Size	50 Pack
Pin Diameter	3.9 mm
Pin Length	12 mm
Sleeve Material	Copper
Temperature	-55 to 105 deg C
