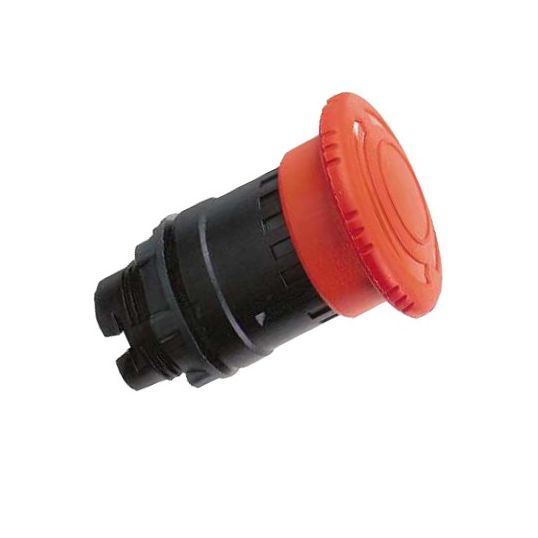

Schneider Pushbutton Actuator Only 40mm Mushroom Head Plastic Body Trigger Action and Mechanical Latching Red 22mm

Description

Pushbutton Actuator, Standard Mushroom Actuator Head, Turn To Release Reset Method, Trigger Action and Mechanical Latching Operator, Trigger/Mechanical Latching Operator Action, 300000 Cycles, 0.6 Nm Tightening Torque, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, Panel Mounting, 22 mm Mounting Hole Diameter, IP66/67/69/69K, NEMA 13/4X, Dark Grey Plastic Bezel, Red, -40 to 70 deg C, 40 mm Diameter, 40 mm Height, 40 mm Width, 57 mm Depth

Key Specifications

Barcode (EAN-13)	3389110906929
SKU	TEEZB5-AS844
Brand	Schneider
Range Name	Harmony Style 5
Product Type	P/B Actuators Mushroom

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB5AS844
Actuator Head	Standard Mushroom
Bezel Material	Dark Grey Plastic
Colour	Red
Depth	57 mm
Diameter	40 mm
Height	40 mm
Mounting Hole Diameter	22 mm
IP Rating	IP66/67/69/69K
NEMA Rating	NEMA 13/4X
Operating Cycles	300000 Cycles
Mounting Method	Panel
Operator Action	Trigger/Mechanical Latching
Operator Type	Trigger Action and Mechanical Latching
Temperature	-40 to 70 deg C
Reset Method	Turn to Release
Tightening Torque	0.6 Nm
Terminal Connection	Screw Clamp/Plug-in/Printed Circuit Board/Faston
Width	40 mm
