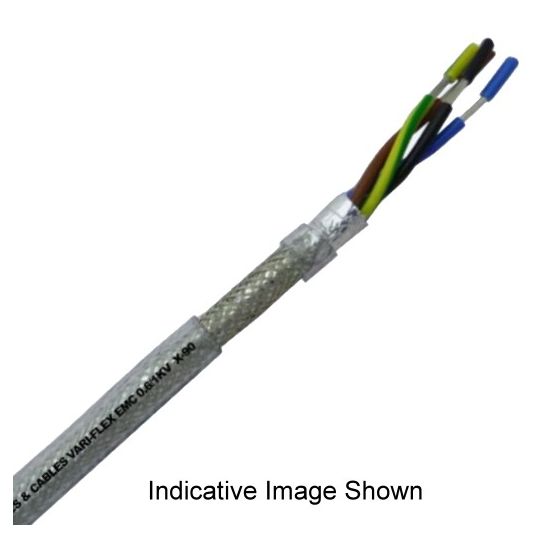

Bambach Flexible VSD/EMC Cable Screened 3 Core & Earth 1.5mm 0.6/1kV Copper XLPE/TACBS/Aluminium/PET Tape/PVC Clear

Description

VSD/EMC Cable, 1.5 mm, Class 5 Annealed Copper, 0.6-1 kV, 16 Amp, 3 Core + Earth, 30/0.25 mm Strands, 11.5 mm Overall Diameter, Static 69 mm Bend Radius, 100% Screen Coverage, Oxygen Free Tinned Annealed Copper Braid/Aluminium/PET Tape Screen, Brown/Blue/Black/Green/Yellow Core, X-90 XLPE Insulation, 4V-75 PVC Sheath, Clear Sheath, -10 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6 IEC 60228

Key Specifications

SKU	BAM46034CRS
Brand	Bambach
Product Type	VSD/EMC Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Tinned copper braid and foil screen provides excellent screening from external EMI Oxygen free tinned copper for high conductivity soldered connections and corrosion protection Lighter weight and reduced overall diameter Split earths (6 sq-mm and larger) provide enhanced balance for harmonics UV resistant 4V75 PVC sheath RoHS compliant to European environmental requirements Excellent Screening - Huge reduction in electrical and electronic emissions from cable Reduced Noise Effects - Greatly reduces the effects of noise disturbance on cable signals Easy to Terminate / to Use - Fibrillated non-hygroscopic fillers make cable round and easy to terminate with an EMC gland Extremely Flexibility - Class 5 flexible conductor stranding and flexible braid stranding
Standard Pack Size	10
UNSPSC Class	26121600
UOM	MTR
Vendor Product	46034CRS
Bend Radius	Static 69 mm
Conductor Size	1.5 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Brown/Blue/Black/Green/Yellow
Current	16 Amp
Insulation Material	X-90 XLPE
Number of Cores	3 Core + Earth
Overall Diameter	11.5 mm
Screen Coverage	100%
Screen Material	Oxygen Free Tinned Annealed Copper Braid/Aluminium/PET Tape
Sheath Colour	Clear
Sheath Material	4V-75 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6 IEC 60228
Temperature	-10 to 75 deg C
Stranding	30/0.25 mm
Voltage	0.6-1 kV
