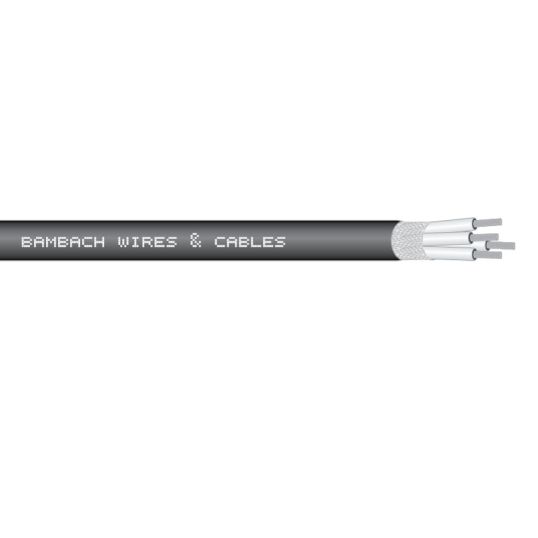

Bambach Mining Cable Type 1 Machine 2 Core Overall Screened 1.5mm 1.1/1.1kV PVC/TACS/PVC Black

Description

Mining Cable, Type 1 Machine, 2 Core, Overall Screened, 1.5 mm, Class 5 Tinned Annealed Copper, 1.1/1.1 kV, 17 Amp, 30/0.25 mm Strands, 8.6 mm Overall Diameter, 51.6 mm Bend Radius, Conductor Resistance: DC - 12.3 Ohm/km, Tinned Annealed Copper Screen, V-90HT PVC Insulation, 5V-90 PVC Sheath, White with Black Numbered Cores, Black Sheath, 0 to 90 deg C, AS/NZS 1125, AS/NZS 1972, AS/NZS 3808

Key Specifications

SKU	BAM14475BKS
Brand	Bambach
Product Type	Mining Cable Type 1 Machine

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fine conductor stranding for high flexing RoHS compliant to European environmental requirements Tinned copper strands for high corrosion protection Tinned copper braid with 90% minimum coverage provides excellent EMI and mechanical protection Easy to identify white cores with black numbering Robust Construction - Cores are taped and tightly braided to minimise damage from vibration Extremely Flexible - Flexible cable using class 5 conductors Easy to Install - Flexible insulation and sheath for use in confined applications Excellent Screening - Composite tinned copper and poly-yarn screening provides excellent mechanical strength with high coverage
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	14475BKS
Bend Radius	51.6 mm
Conductor Resistance	DC: 12.3 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Class 5 Tinned Copper
Core Colours	White/Black Numerals
Current	17 Amp
Insulation Material	V-90HT PVC
Number of Cores	2 Core
Overall Diameter	8.6 mm
Screen Format	Overall Screened
Screen Material	Tinned Annealed Copper
Sheath Colour	Black
Sheath Material	5V-90 PVC
Temperature	0 to 90 deg C
Standards	AS/NZS 1125 AS/NZS 1972 AS/NZS 3808
Stranding	30/0.25 mm
Voltage	1.1 kV
