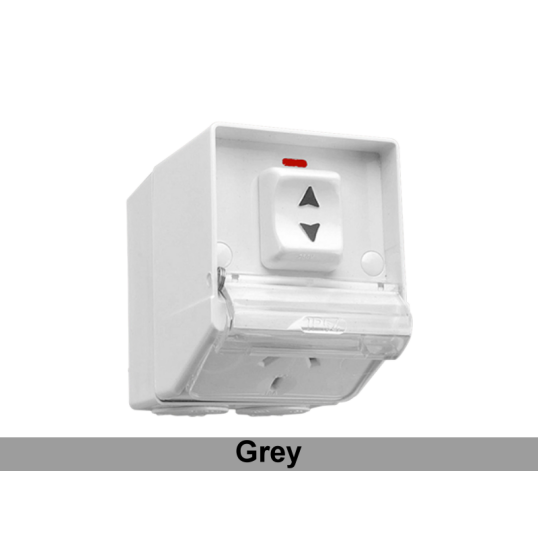

Clipsal GPO Switched Outlet Weatherproof Surface Mount Standard 1 Gang 10A 250V IP54 Horizontal Grey

Description

GPO Switched Outlet Weatherproof, 250 Volt Switch, 10 Amp, 50 Hz, 3, Large Angle, 1 Phase Phase, 1 Gang, Horizontal Orientation, On/Off Sliding Button Control, IP54, Surface Mounting, 84 mm Mounting Centres, Screw Connection, 2 x 20 mm Conduit Entry, 4 x 2.5 sq-mm Terminal Capacity, Plastic, Grey, 75 mm Height, 78 mm Width, 87 mm Depth

Key Specifications

Barcode (EAN-13)	9311554002855
SKU	CLIWSC228GY
Brand	Clipsal
Range Name	WeatherShield
Product Type	GPO Weatherproof

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suit 75 mm columns
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	WSC228-GY
Angle	Large
Colour	Grey
Conduit Entry	2 x 20 mm
Connection Type	Screw
Control Type	On/Off Sliding Button
Current	10 Amp
Depth	87 mm
Frequency	50 Hz
Height	75 mm
IP Rating	IP54
Material	Plastic
Mounting Centres	84 mm
Mounting Method	Surface
Number Of Gangs	1 Gang
Phase	1 Phase
Orientation	Horizontal
Pin Configuration	3 Pin
Terminal Capacity	4 x 2.5 sq-mm
Width	78 mm
