APEC 2.5mm Flat TPS Cable Black/Red/Green/Yellow 500mtr

Description

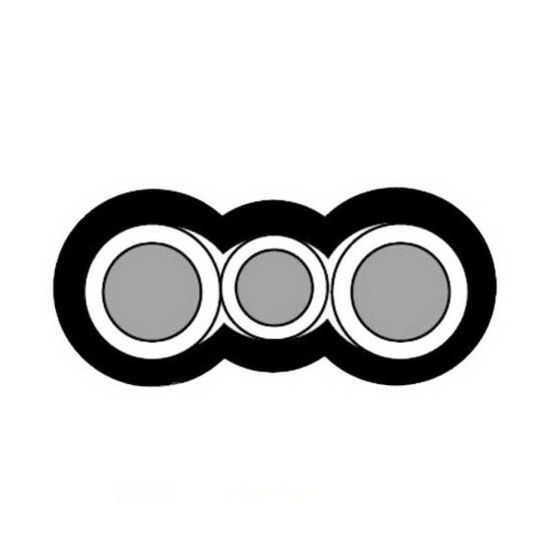

Flat TPS Cable, 2.5 mm, Annealed Copper, 450-750 Volt, 2 Core + Earth, 12.6 mm x 5.6 mm Overall Diameter, 2.01 mm Earth Conductor, 100 mtr Length, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Red/Black/Green/Yellow Core, PVC Insulation, PVC Sheath, White Sheath, 90 deg C, AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	932666300128
SKU	APEVFM205E02W-5
Brand	APEC
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	VFM205E02W-1
Conductor Size	2.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/Red/Green/Yellow
Earth Conductor Size	2.01 mm
Insulation Material	PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core + Earth
Overall Diameter	12.6 mm x 5.6 mm
Sheath Colour	White
Sheath Material	PVC
Sheath Thickness	1 mm
Standards	AS/NZS 5000.2
Temperature	90 deg C
Voltage	450-750 Volt
