APEC 4mm Orange Circular Cable Unarmoured PVC/PVC 500mtr

Description

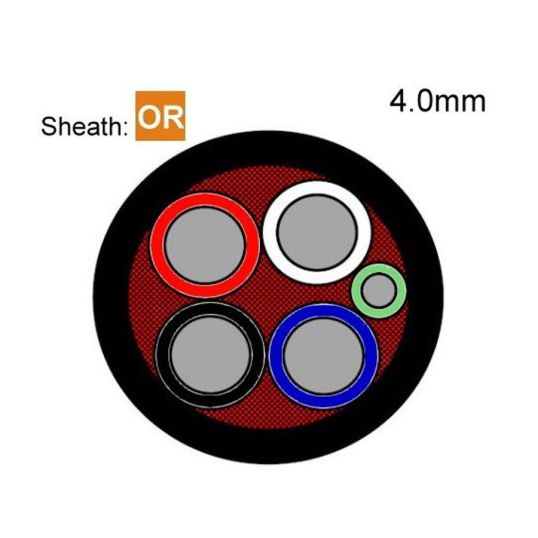

Circular Power Cable, Unarmoured, 4 Core & Earth, 4mm, Annealed Copper, 0.6/1 kV, 2.5mm Earth Conductor, 15.8mm Overall Diameter, 1mm Insulation Thickness, 1.8mm Sheath Thickness, PVC Insulation, PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	932666300407
SKU	APEMVM004E045K1-5
Brand	APEC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MVM004E045K1-5
Conductor Size	4 mm
Core Colours	Black/Blue/Red/White/Green/Yellow
Conductor Type	Annealed Copper
Earth Conductor Size	2.5 mm
Insulation Material	PVC
Insulation Thickness	1 mm
Number of Cores	4 Core + Earth
Overall Diameter	15.8 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
