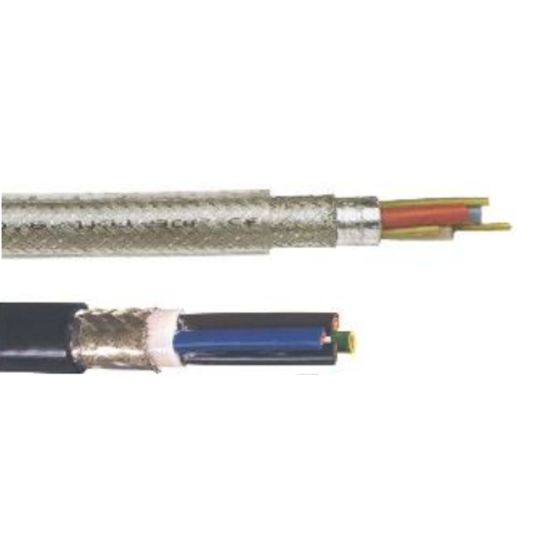

Aflex Flexible: Cable VSD EMC Screened 3 Core & Earth 1.5 mm 0.6/1kV XLPE/Tinned Copper Braid/TPE Clear
Loading...
Description
Flexible: Cable, VSD EMC Screened, 3 Core & Earth, 1.5 mm, Bare Annealed Copper, 0.6/1 kV, 20 Amp, 1.5 mm Earth Conductor, 13.5 mm Overall Diameter, Bend Radius: Static - 135 mm Flexible: 270 mm, Tinned Copper Braid Aluminium/Mylar Tape Screen, XLPE Insulation, TPE Sheath, Brown Blue Black Green/Yellow Cores, Clear Sheath, -30 to 90 deg C, AS 3147, IEC 332-1
Key Specifications
| SKU |
AFL77780415SC
|
|---|---|
| Brand |
Aflex
|
| Product Type |
VSD/EMC Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 77780415SC |
| Bend Radius | Static 135 mm/Flexible 270 mm |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/Blue/Brown/Green/Yellow |
| Current | 20 Amp |
| Earth Conductor Size | 1.5 mm |
| Insulation Material | XLPE |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 13.5 mm |
| Screen Material | Tinned Copper Braid Aluminium/Mylar Tape |
| Sheath Colour | Clear |
| Sheath Material | TPE |
| Standards | AS 3147 IEC 332-1 |
| Temperature | -30 to 90 deg C |
| Voltage | 0.6-1 kV |
